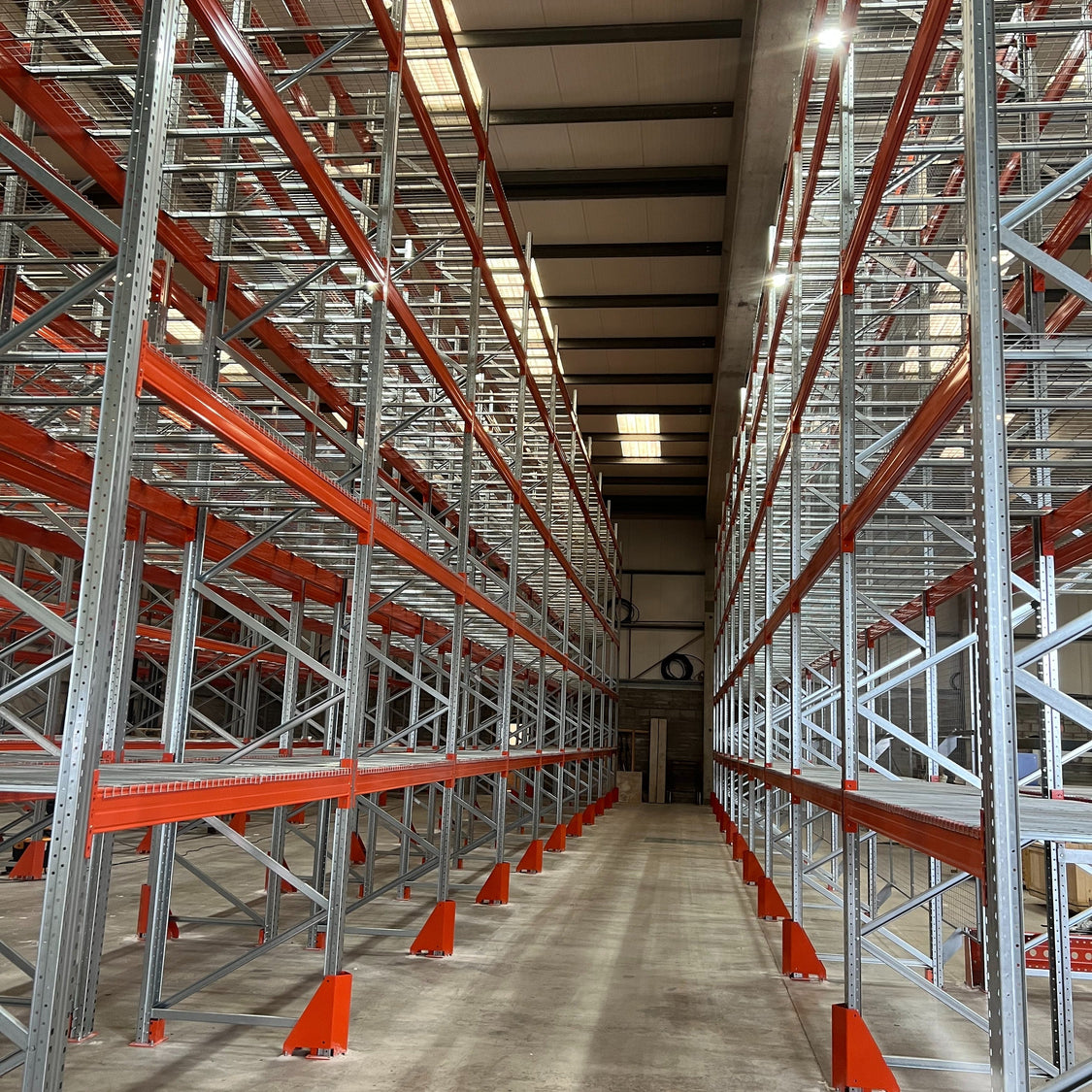

Choosing the correct beam rating and load capacity for pallet racking requires calculating total pallet weights, understanding uniformly distributed load (UDL) specifications and accounting for safety margins. Beam capacity must support the combined weight of pallets, goods and any additional equipment placed on each level. Selecting inadequate beam ratings compromises structural integrity and creates serious safety hazards, making accurate capacity calculations essential for safe warehouse operations.
Calculate Total Pallet Weight Accurately
Start by determining the maximum weight of your heaviest loaded pallets. Include the pallet itself (typically 15-25 kg for standard wooden pallets), the goods stored on it and any packaging materials, wrapping or dunnage. Weigh representative samples of your typical loads rather than estimating, as actual weights often exceed initial assumptions. Document weights for different product categories, as you may store various items with different weight characteristics across your warehouse.
Consider seasonal variations in inventory that might increase pallet weights temporarily. If your business handles both light and heavy products, base capacity calculations on your heaviest anticipated loads to ensure the racking system handles all scenarios safely.
Understand UDL (Uniformly Distributed Load) Ratings
Beam capacity specifications use UDL ratings, which assume the weight is distributed evenly across the entire beam length. A beam rated at 3,000 kg UDL can safely support that weight when distributed uniformly, but concentrated loads in one area create higher stress points that may exceed safe limits. Check manufacturer specifications carefully, as Kimer industrial pallet racking systems offer capacities ranging from 1,500 kg to 3,500 kg and beyond per level, depending on beam height, thickness and configuration.
UDL ratings differ from point load capacity. Two pallets sitting side by side on a beam pair distribute weight more evenly than a single heavy pallet positioned at the beam centre. Understanding this distinction helps you select appropriate beam ratings for your specific storage patterns.
Determine Number of Pallets Per Level
Establish how many pallets each beam level will support simultaneously. Standard configurations typically accommodate two pallets per level (one per bay), but wider systems can hold more. Multiply the number of pallets by the individual pallet weight to calculate the total level capacity required. For example, two 1,200 kg pallets require beams rated for at least 2,400 kg UDL, but you should specify a higher capacity for safety margins.
Account for beam spacing when planning pallet placement. Beams must be spaced correctly to support your pallet dimensions without overhanging. Standard pallet sizes in Ireland are 1,200 × 1,000 mm (UK pallets) and 1,200 × 800 mm (EU Pallets), requiring appropriate beam spacing to ensure proper support.
Consider Beam Thickness and Material Quality
Beam load capacity depends on beam thickness, material quality and length between uprights. Thicker beams support heavier loads, with common specifications including 140 mm beam thickness for 3,000 kg capacity levels. High-quality steel construction using S-355 grade steel provides superior strength and durability compared to lower-grade materials. Kimer pallet racking uses S-355 quality steel meeting ISO 9001 compliance standards, ensuring reliable performance under demanding warehouse conditions.
Longer beam spans reduce capacity compared to shorter spans of identical construction. A 2,700 mm beam supports less weight than a 2,300 mm beam of the same specification due to increased deflection over longer distances.
Include Safety Factors in Calculations
Never operate racking at maximum rated capacity. Industry best practice recommends maintaining at least a 20-25% safety margin below stated capacity ratings. This buffer accounts for dynamic forces during loading and unloading, potential overweight deliveries and gradual component wear over time. If calculations indicate you need 2,400 kg capacity, specify beams rated for 3,000 kg to provide an adequate safety margin.
Dynamic loading creates forces exceeding static weight as forklifts place or retrieve pallets. Impact forces during placement, even when operators work carefully, temporarily increase stress on beams. Safety margins accommodate these dynamic forces without compromising structural integrity.
Consult Manufacturer Load Charts
Reputable manufacturers provide detailed load charts showing capacity ratings for different beam configurations. These charts specify maximum safe loads based on beam length, thickness and upright spacing. RackZone provides comprehensive specifications for all pallet racking systems, including precise capacity ratings for each configuration. Consult these charts before finalising your racking design to ensure selected components meet your requirements.
Load charts account for engineering calculations, including beam deflection, stress distribution and safety factors. Following manufacturer guidelines ensures compliance with safety standards and maintains warranty coverage.
Verify Floor Load Capacity
Ensure your warehouse floor can support the total weight of fully loaded racking systems. Calculate the combined weight of the racking structure, maximum anticipated load and safety factors, then verify this against floor specifications. Inadequate floor capacity leads to settling, cracking or structural damage that compromises racking stability. Some installations require floor reinforcement or load distribution plates beneath upright frames.
Display Load Capacity Information Clearly
Install load capacity signs at each bay showing maximum safe working loads for individual levels and complete bays. These signs prevent overloading by providing visual reference for warehouse staff and forklift operators. Signs should display beam spacing information to ensure only correctly sized pallets are used. Clear capacity labelling creates accountability and helps maintain safe operating practices throughout the warehouse.
